TSS TRAILERS

With over 20 years of continuous development and quality improvement,CIMC has become a global leader.

Listed as one of the first 2000 world leading companies by FORBES in 2009 and No. 128 of Chinese top 500 companies by Fortune China in 2010,CIMC has become the new standard for Semi Trailers.







PRODUCTS OVERVIEW

TSS TRAILERS







Model: THT9441 - (35 Ton Flat bed Semi-Trailer With Side walls)

WEIGHT

Tare Weight: Approx. 8,600kg (excluding one spare wheel)
Payload : 35,000kg
G.V.W.R.: 43,600kg
Kingpin Weight: 15, 800Kg
Axle Weight: 27, 800Kg
Brake: Dual line pneumatic. Wabco
brake valve

RUNNING GEAR

Suspension: THT Single point
(Tandem) suspension; 12-leaf
Axles: FUWA square axle, 13ton
capacity set
Rims: 9.0-22.5,10 holes steel Disc wheel.
9pcs(including one square rim
Tires: 12R22.5-16PR. 9 pcs(including one
spare tires)
King Pin: JOST 3.5"bolted type
Lock: 12 sets twist locks.
Floor 3mm thick

Model:THT9400GYY - (33,000L Semi Trailer Road Tanker for Vegetable Oil)

WEIGHT

Tare Weight: Approx. 10,100kg
(excluding one spare wheel)
Payload : 29,700kg
G.V.W.R.: 39,800kg
Kingpin Weight: 16,220kg
Axle Weight: 23, 580Kg

RUNNING GEAR

Suspension: THT Bogie type
(Tandem) suspension
Axles: FUWA square axle, 13ton
capacity. Two axles. 2 Line pneumatic
Tires: 315/80R22.5-16PR. 9
pcs(including one spare tires)
Brake 2 line pneumatic brake system
TANK SPECIFICATIONS
Capacity 33,000L 3~5% Vapor Level. 3 Comparments (11,000L each)
Tank Material Stainless steel 304. Shell thickness 4mm nominal

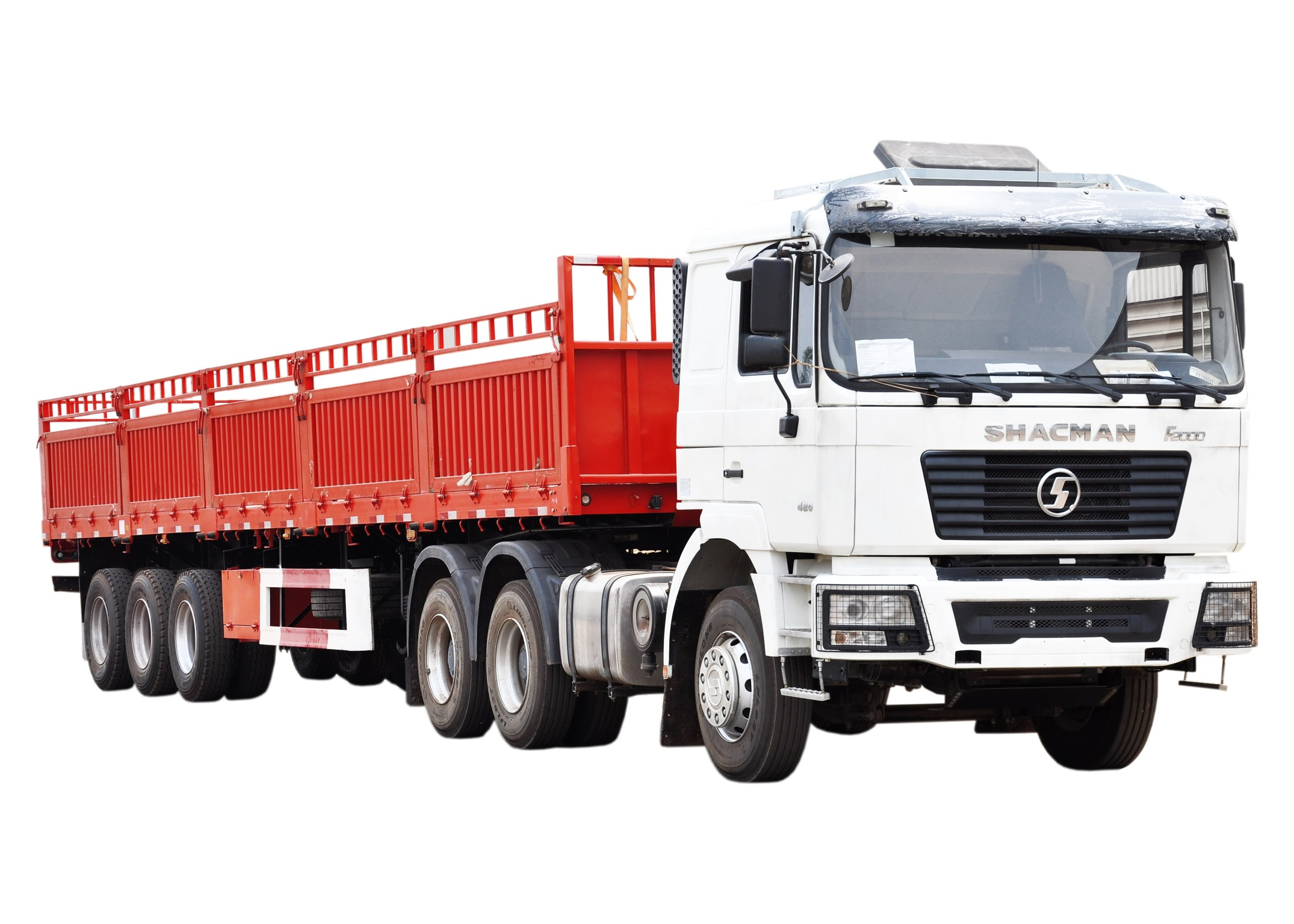

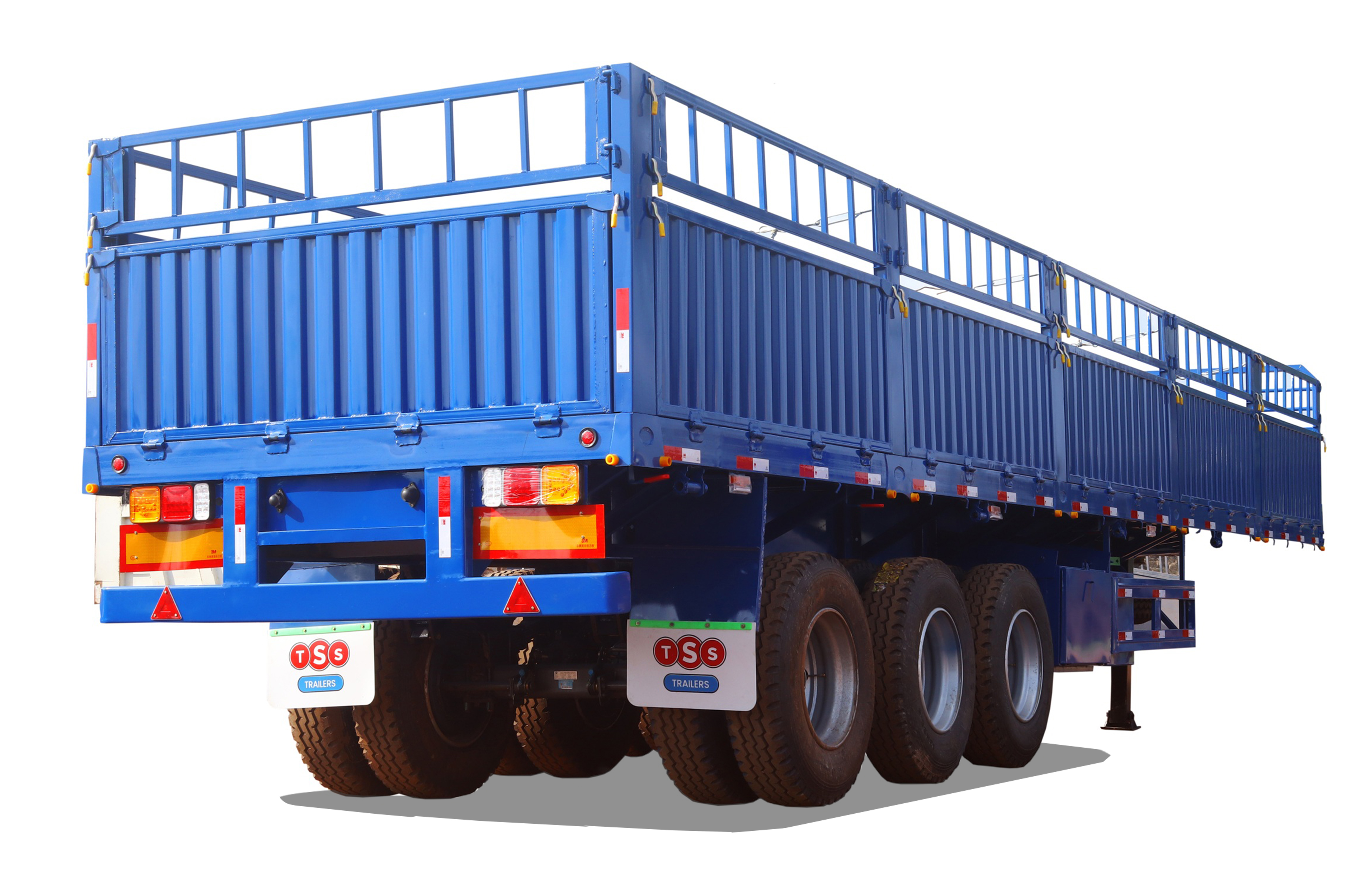

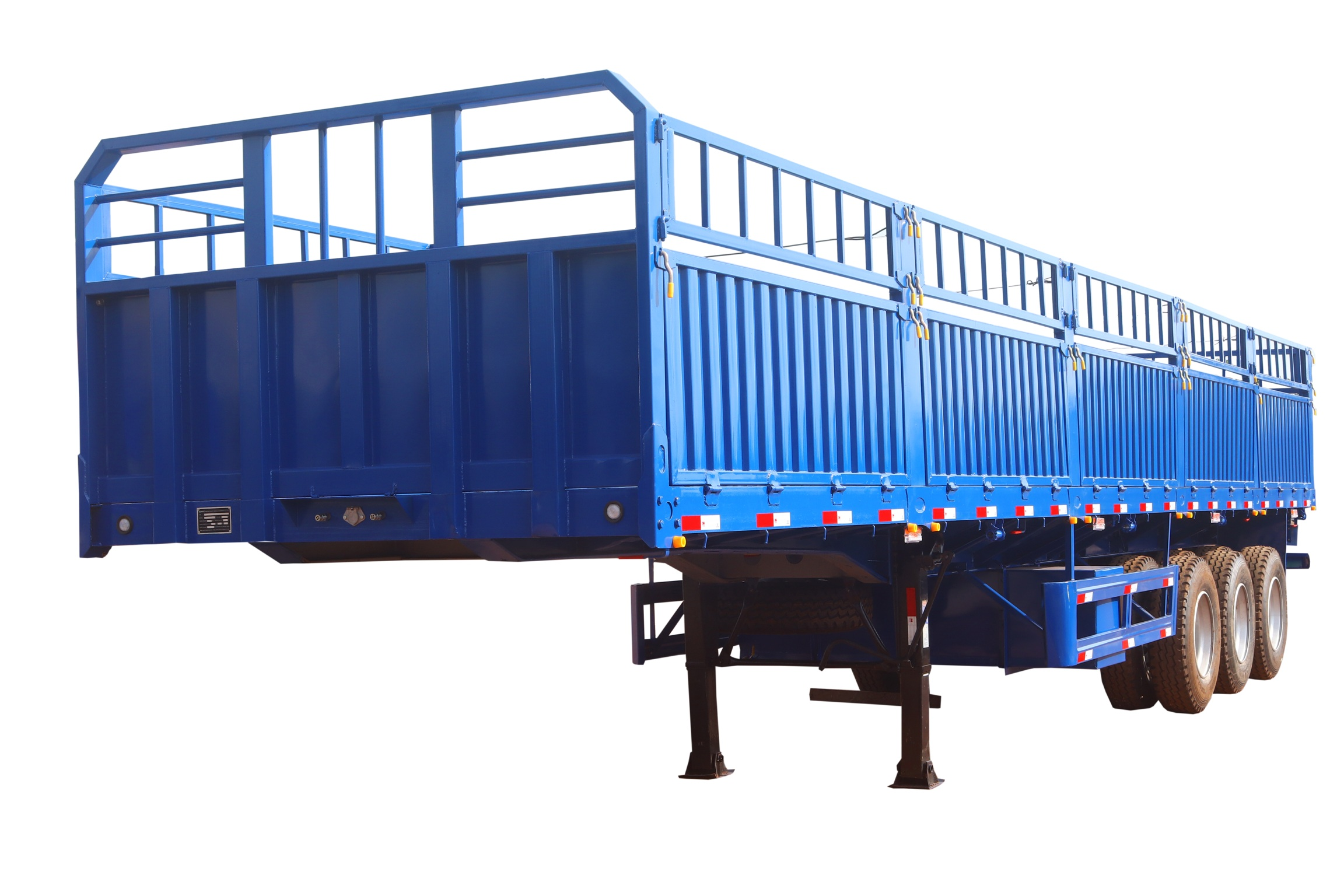

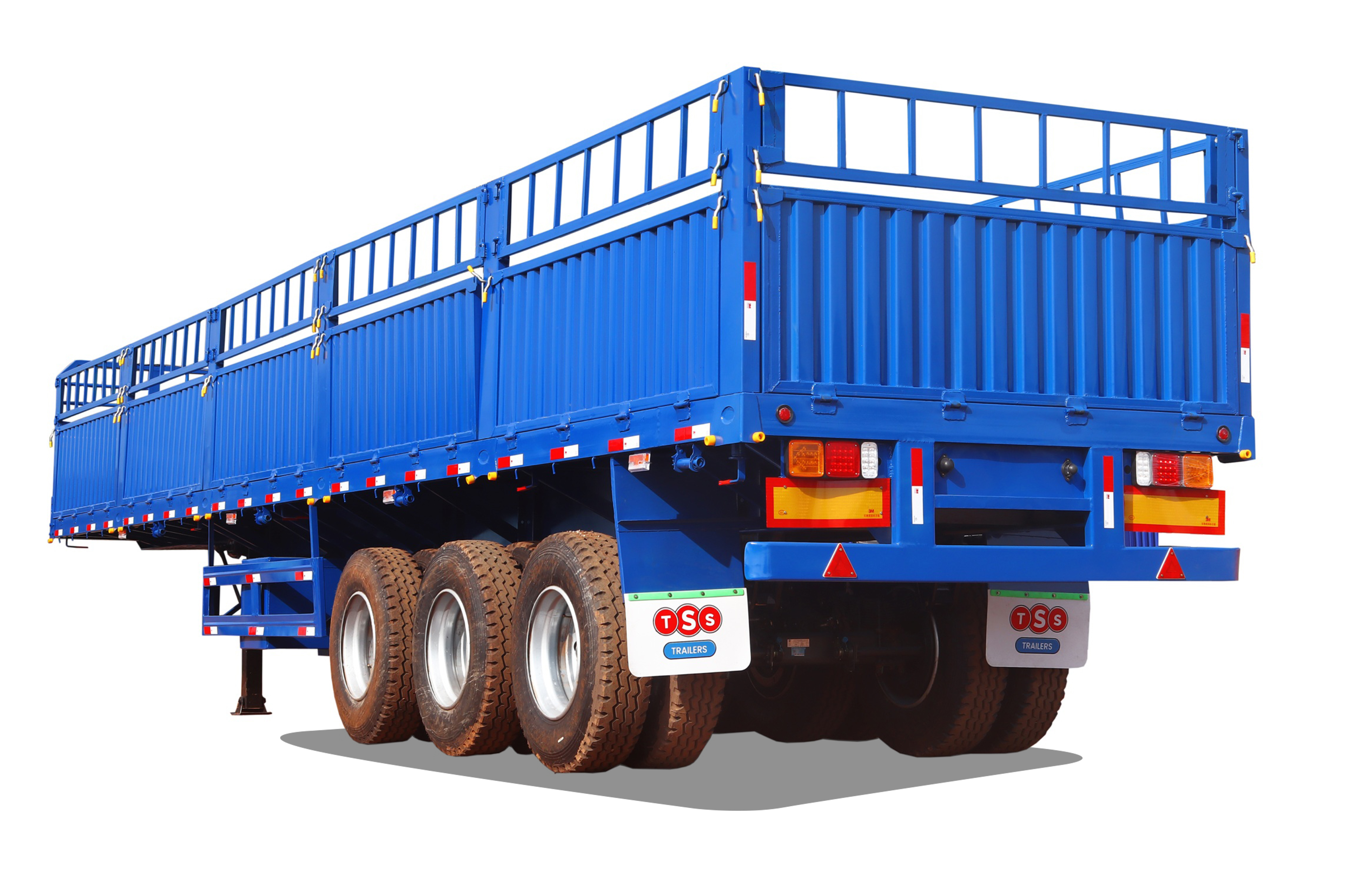

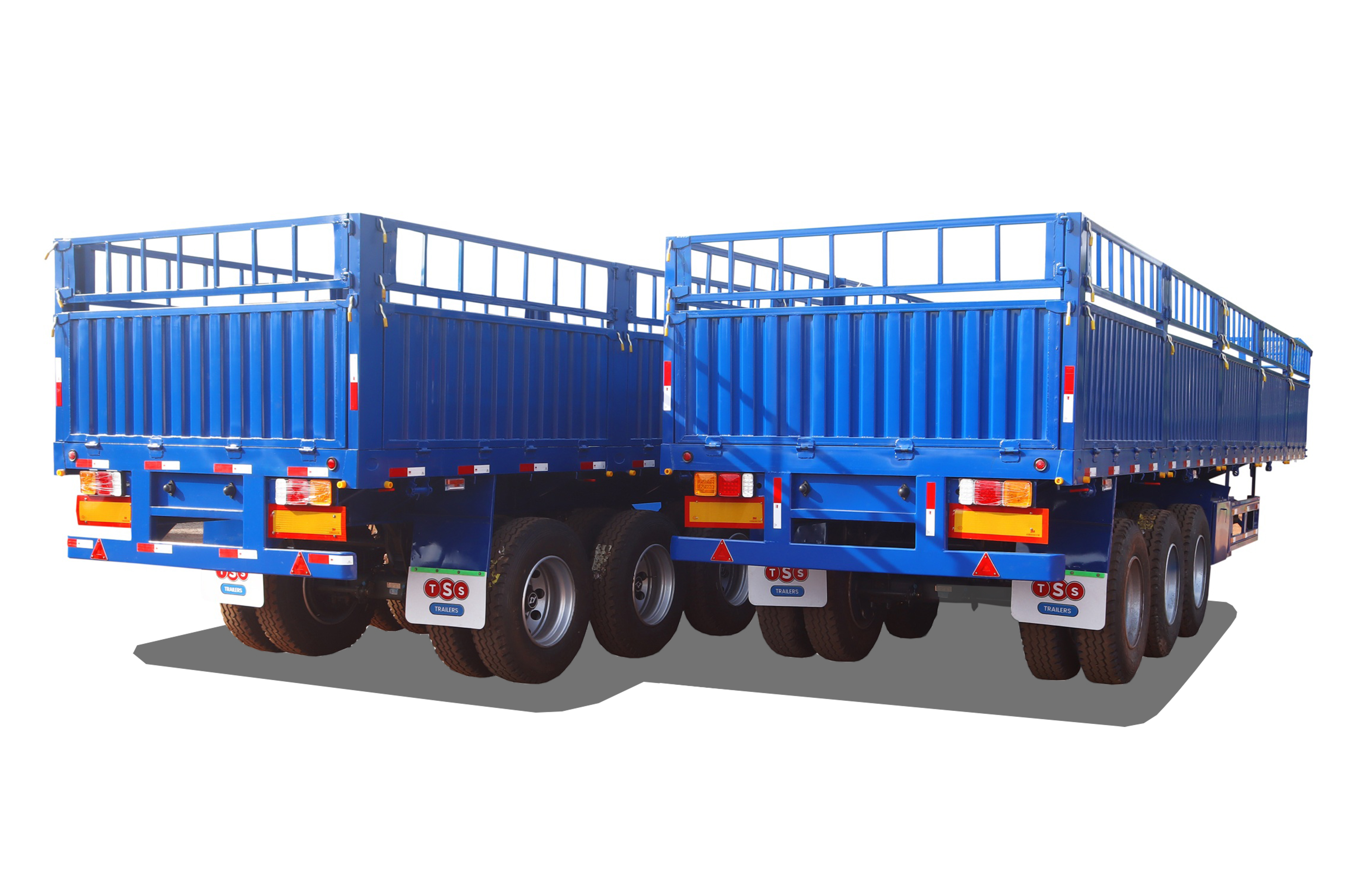

Model: THT9590 (50 Ton Flat bed Semi-Trailer With Side walls)

WEIGHT

Tare Weight: Approx 9,500kg
Payload : 50,000kg
G.V.W.R.: 59,500kg
Kingpin Weight: 19,200kg
Axle Weight: 40, 300Kg
Brake: Dual line pneumatic. Wabco
brake valve

RUNNING GEAR

Suspension: Tri-axle suspension with
equalizer; 8-leaf spring.
Axles: FUWA square axle, 3-sets, 15ton
capacity/set.
Rims: 8.25-22.5,10 holes steel Disc
wheel. 13pcs (including one spare rim)
Tires: 12R22.5-16PR. 13pcs(including
one spare tires)
King Pin: JOST 3.5"bolted type
Lock: 12 sets twist locks.
Floor 2.75mm thick



BULK CARRIERS

VUR-MAK Viking Type Semitrailer Bulk Carriers are extremely powerful pressure vessels used effectively for the delivery and unloading of bulk cement and similar products which have a specific weight of 0.2 to 2.5 tons/m3.

Vikings has a carrying capacity from 20 tons to 75 tons and they have the fastest pneumatic unloading system in the sector. Thanks to this feature, it guarantees to unload one ton of cement in a minute when it reaches to appropriate pressure. Our products which can be designed as Viking,  Container and Damper type are produced by using first class materials with superior engineering experience and production knowledge and they are equipped with features which will meet all of your expectations.



TECHNICAL DETAILS



CAPACITY   20 to 75 Tonnes Loading Capacity
TYPE   Banana,V Shaped,Container Type
CHASIS   Domex,Docol or ST 52 Steel for Tank Structure
AXLE GROUP   Pilot or Tandem Type Axle Group
SUSPENSION   Air or Mechanical Suspension Including Front Axle Lifting Gear
BRAKE SYSTEM   ABS,EBS, or ECAS Brake Systems
ILLUMINATION   ADR Qualified Electrical System
KINGPIN   2 Inch or 3 1/2 Inch Jost or Saf Holland Brand King-Pins
LANDING LEGS   2x25 Tonnes Capacity Mechanical Landing Legs
COMPRESSORS   Electrical or Diesel Engined Compressors
ACCESSORIES   Pneumatic Piston Powered Catwalk,Weight Clocks,Parking Sensors,Cement Hoses and Couplings,Hubodometers
