YAXING OPEN ROOF TOUR BUS
For Carnivals and Sightseeing
  YAXING COACH YBL6123H
Deluxe Bus [Available in 12m(4 X 2) and 13.7m(6 X 2)]



TECHNICAL INFORMATION ON YAXING OPEN ROOF TOUR BUS

DIMENSIONS
Lenght 1137
Width 2250
Height 3750
Weel Base 5500
WEIGHT
Kerb Weight 12200
Gross Veichle weight 17500
Pay Load 5400
Front Axle Load Capacity 6500 BENZ
Rear Axle Load Capacity 13000 BENZ
3rd Rear Axle Load Capacity
Passenger Capacity 70+1
Tank Capacity 250
ENGINE

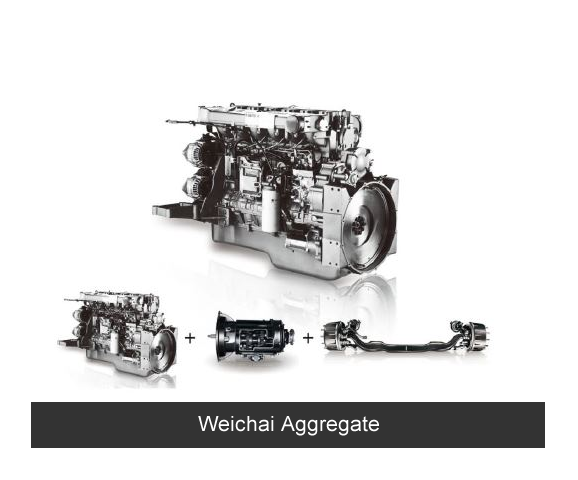

Model Weichai 300HP
Position Rear
Cylinders 6
Turbo Charge yes
Fuel System Diesel
Emissions Euro III
Displacement
Bore
Stroke
Output (Max)Rpm
Torque (Max)Rpm
GEAR BOX
Model Manual ZF TECh
Option Voith Automatic Gear Box

BRAKE SYSTEM
Front Brake Drum, Dual circuit peneumatic air
Rear Brake Drum, Dual circuit peneumatic air
Parking Brake Spring storage actueated real axle
ABS yes
Retarder Voith Hydraulic Retarder
Adjusted automatic Arm yes
SUSPENSION SYSTEM
Front Suspension 2 Air Bellow with Shock Absorber
Rear Suspension 4 Air Bellow with Shock Absorber
3RD Rear Suspension

STEERING SYSTEM
Model ZF German ZF 8097
Type Power Steering
Diameter of the Steer 500 mm
Turning Radius 12m
TIRE
Size 295/80R22,5 Hankook
Rim 900x22,5
Spare Tire yes
ELECTRICAL SYSTEM
Alternator
Kick Starter KW 6.6
Batteries V/AH 2x12/165
BODY
Service Door 2 Pantograph Doors
Side Window Sliding
Lighting Interior and exterior
VIDEO 2 monitors + DVD
Defroster 6000 Kcal
Air Conditioner AC Spheros
Rear View Mirror Manual
Curtain yes

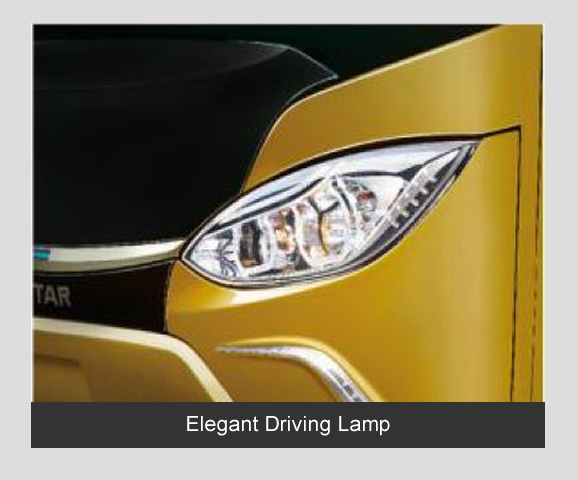

OTHERS Two more fog lamp
2 Monitors Radio AM/FM
  Translation System
  Open roof

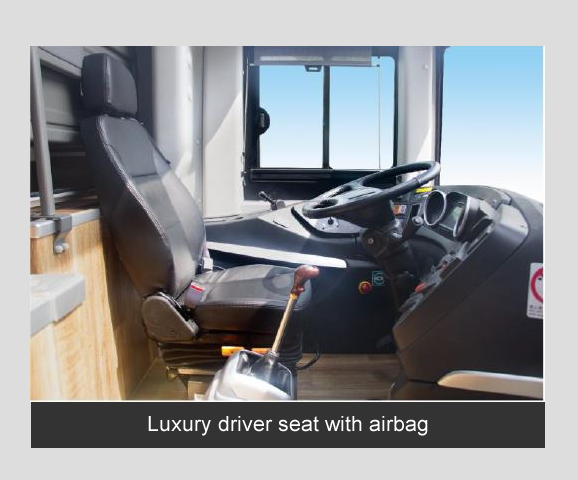

  Drive Seat Suspension
  First step with 380mm
  Digital Clock




TECHNICAL INFORMATION ON YAXING COACH YBL6123H 12m(4 X 2) DELUXE BUS

DIMENSIONS
Lenght 12000
Width 2250
Height 3790
Weel Base 6130
WEIGHT
Kerb Weight 13300
Gross Veichle weight 18000
Pay Load 4700
Front Axle Load Capacity 7500
Rear Axle Load Capacity 13000
3rd Rear Axle Load Capacity
Passenger Capacity 44+1+1
Tank Capacity
ENGINE
Model Cummins ISLE, Also available in Weichai
Position Rear
Cylinders 6
Turbo Charge yes
Fuel System Diesel
Emissions Euro III
Displacement 8.9 L
Bore 114 mm
Stroke 144.5 mm
Output (Max)Rpm 250/2100
Torque (Max)Rpm 1425/1400
GEAR BOX
Model QJ S6-160 ZF TECH
Type, Number of Gear Mechanical - 6 speeds
Ratio 6.90/4.09/2.45/1.50/1.00/0.81/R6.48
BRAKE SYSTEM
Front Brake Drum, Dual circuit peneumatic air
Rear Brake Drum, Dual circuit peneumatic air
Parking Brake Spring storage actuated real axle
ABS yes Wabco
Retarder Voith Hydraulic Retarder R133-2
Adjusted automatic Arm yes
SUSPENSION SYSTEM
Front Suspension 2 Air Bellow with Shock Absorber
Rear Suspension 4 Air Bellow with Shock Absorber
3RD Rear Suspension

STEERING SYSTEM
Model ZF German ZF 8098
Type Power Steering
Diameter of the Steer 500 mm
Turning Radius 12m
CLUTCH
Model SACHS GMF 430
Type Plate Single
Diameter 430 mm
TIRE
Size 12R22,5 Giti
Rim 9.00x22,5
Spare Tire yes
ELECTRICAL SYSTEM
Alternator 140A
Kick Starter
Batteries 6-QA-195
BODY
Service Door 2 Pantograph Doors
Side Window Sliding
Lighting Interior and exterior
VIDEO 2 monitors + DVD
Defroster 6000 Kcal, CS-13
Air Conditioner AC Spheros 30000kcal/h

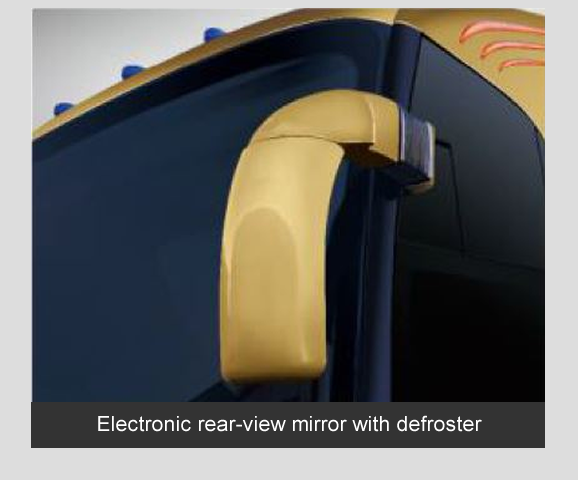

Rear View Mirror Electrically adjustable, with defrost function
Curtain yes
OTHERS Two more fog lamp
  Radio AM/FM
  Rear Toilet (Option)
  Windshield in 2parts
  Drive Seat Suspension
  First Step with 450mm
  Digital Clock




TECHNICAL INFORMATION ON YAXING COACH YBL6123H 13.7m(6 X 2) DELUXE BUS

DIMENSIONS
Lenght 13700
Width 2250
Height 3798
Weel Base 6600/1540
WEIGHT
Kerb Weight 15000
Gross Veichle weight 21500
Pay Load 6500
Front Axle Load Capacity 6500
Rear Axle Load Capacity 10000
3rd Rear Axle Load Capacity 5000
Passenger Capacity 52+1+1
Tank Capacity
ENGINE
Model Cummins ISLE, Also available in Weichai
Position Rear
Cylinders 6
Turbo Charge yes
Fuel System Diesel
Emissions Euro III
Displacement 8.9 L
Bore 114 mm
Stroke 144.5 mm
Output (Max)Rpm 275/2100
Torque (Max)Rpm 1550/1100-1400
GEAR BOX
Model QJ S6-160 ZF TECH
Type, Number of Gear Mechanical - 6 speeds
Ratio 6.90/4.09/2.45/1.50/1.00/0.81/R6.48
BRAKE SYSTEM
Front Brake Disk, Dual circuit peneumatic air
Rear Brake Drum, Dual circuit peneumatic air
Tag axle Brake Disk, Dual circuit peneumatic air
Parking Brake Spring storage actuated real axle
ABS yes Wabco
Retarder Voith Hydraulic Retarder R133-2
Adjusted automatic Arm yes
SUSPENSION SYSTEM
Front Suspension 2 Air Bellow with Shock Absorber
Rear Suspension 4 Air Bellow with Shock Absorber
3RD Rear Suspension 2 Air Bellow with Shock Absorber

STEERING SYSTEM
Model ZF German ZF 8098
Type Power Steering
Diameter of the Steer 500 mm
Turning Radius 12m
CLUTCH
Model SACHS GMF 430
Type Plate Single
Diameter 430 mm
TIRE
Size 12R22,5 Giti
Rim 9.00x22,5
Spare Tire yes
ELECTRICAL SYSTEM
Alternator one 140A + one 150A
Kick Starter
Batteries 6-QA-195
BODY
Service Door 2 Pantograph Doors
Side Window Sliding
Lighting Interior and exterior
VIDEO 2 monitors + DVD
Defroster 8000 Kcal
Air Conditioner AC Spheros 35000kcal/h
Rear View Mirror Electrically adjustable, with defrost function
Curtain yes
OTHERS Two more fog lamp
  Radio AM/FM
  Rear Toilet (Option)
  Windshield in 2parts
  Drive Seat Suspension
  First Step with 450mm
  Digital Clock
